Mini K67x Condenser Microphone

Regular price $ 479.00 Sale price $ 479.00
Shipping calculated at checkout.
In stock
Description
Overview

The Mini K67x is a unique large-diaphragm condenser microphone, designed to excel on vocals and guitars.

  • Wideband frequency response with extended "air"/ambience
  • Tube-like harmonic saturation from transformer-coupled circuit
  • Includes our Cutaway shockmount and flight case
  • In stock for immediate shipment

The Mini K67x expands our promise of sonic diversity. The capsule voicing strikes a balance between neutrality and flattery, with tight bass and an open top end. The circuit enhances the source with harmonics. The mic retains the "point and shoot" simplicity of the Mini K lineup.

Like all Roswell microphones, the Mini K67x is designed, soldered, assembled, tested, and tuned in California.

Review Excerpt

A pair of these mics should be on your shortlist. The Roswell Pro Audio Mini K67x is one of those rare affordable, mid-priced mic options with a unique sound that performs well beyond its price bracket.

Paul Vnuk
Recording Magazine
(see full review here)

Customer Feedback for the Mini K67x

The guitar player's lead tone was bad, so I had him send me DI solos to reamp. I tried my normal mic selection, as well as the Mini K67x. It won by a landslide.

I have been using the K67x regularly on female and male R&B and Rock vocals and I am completely blown away. It sounds amazing and easily outperforms much more expensive mics we have in the school’s locker.

I really like the color and weight it has. The color doesn't take away from the clarity. It is definitely my favorite Mini K for vocals.

We are loving the 67x. Put me down for three more!

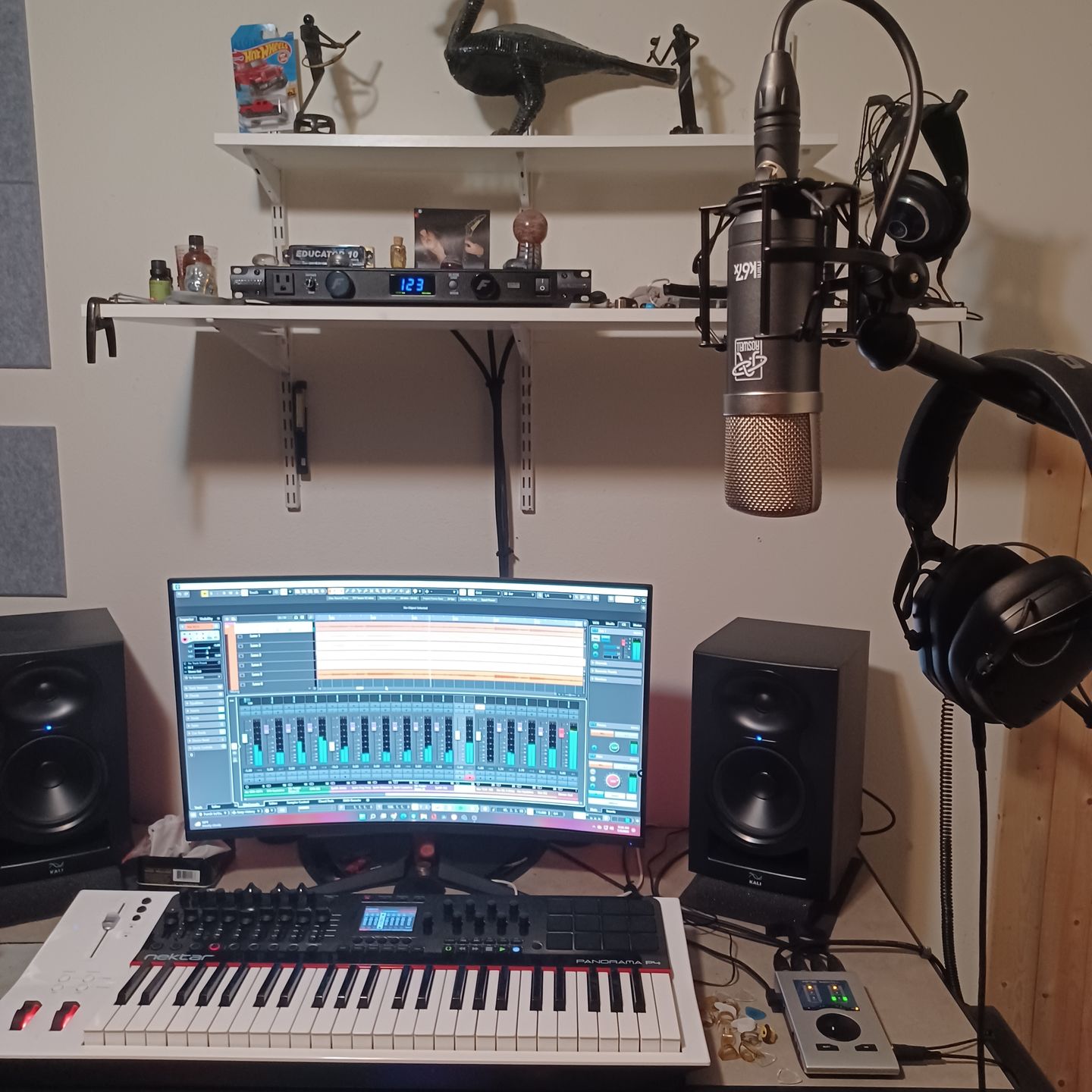

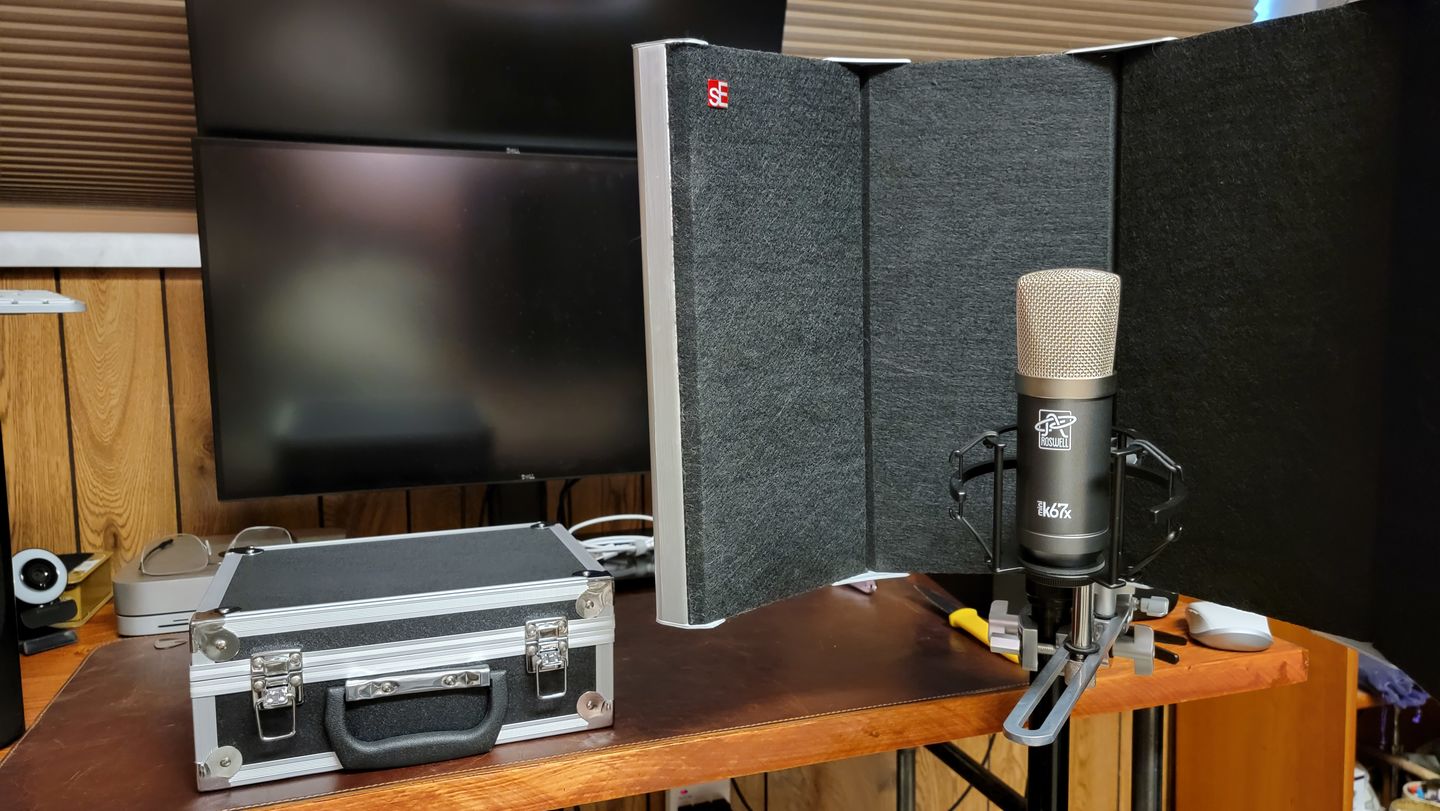

Since getting my new K67x it has earned a place in the centre of my studio. It lives on the boom stand on my desk and I have not unplugged it since it arrived. Spoken word, sung vocals, guitar, acoustic bass guitar, banjo, mandolin, percussion, it makes them all sparkle and shine.

Description

The mic's name, "K67x," refers both to the capsule design and circuit topology. The capsule is based on the K67, although we've built and voiced it with some proprietary tricks to create a sound unlike any other K67 capsule. The "x" in the model name refers to the transformer-coupled circuit, which gives the mic its trademark harmonic saturation.

This combination introduces a new color to the Mini K product line. The mic is not overtly colored, like the Mini K47, nor is it quite as flat and neutral as the Mini K87. The sonic inspiration for this model was the workhorse tube mic of the 1960s, which offered wideband frequency response and harmonics. We kept those characteristics in this incarnation.

Every Roswell microphone is subjected to a 24-hr "burn in" on our proprietary conditioning fixture, then tested extensively prior to shipping: polarity, noise, frequency response, sensitivity, and more. We perform an acoustic sweep test and listen to every microphone multiple times before it leaves our facility.

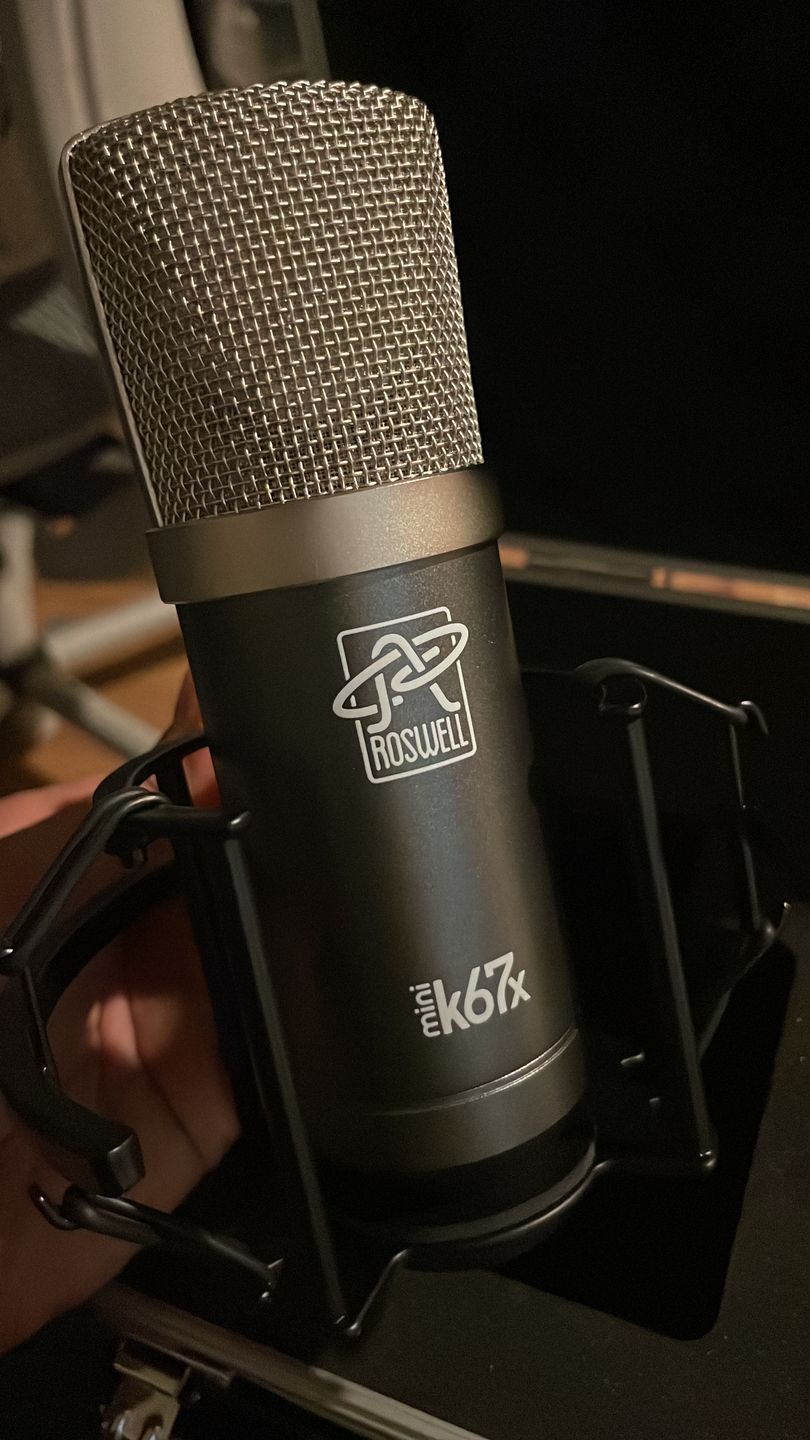

The Mini K67x has a durable gray metallic paint finish. Each mic ships with our exclusive Cutaway™ shockmount, Roswell branded microfleece mic sock, and an upgraded flight case.

Customize

Click here to customize / personalize your Mini K67x via the Roswell Mic Builder.


Features
Features
  • Proprietary 34mm capsule design
  • Vintage circuit design with custom output transformer
  • Hand-picked, audiophile-grade capacitors
  • Heavy, solid steel body with durable finish
  • Exclusive Cutaway™ non-resonant shockmount
Benefits
  • Wideband frequency response provides natural capture of many voices and instruments.
  • Subtle EQ dip in the high frequencies combats vocal sibilance
  • Harmonic saturation enhances the source, much like a tube microphone would.
  • Solid, high-quality construction ensures real-world durability and long service life.
  • Low self-noise keeps hiss out of your tracks.
Design and Component Details

The Mini K67x introduces two unique new sounds to the Mini K product line: the capsule voicing, and the harmonic saturation of the circuit.

Mini K67xThe capsule is a 34mm (large diaphragm) design. As the mic's name suggests, the capsule is nominally a K67 type, but we invested two years' worth of research and development to create a proprietary, "Holy Grail" voicing: full bass without wooliness, slight attenuation in the sibilance range, neutral highs, and extended "air" above 10kHz.

The circuit design borrows from our flagship Colares microphone; it is a single-stage JFET/transformer topology, built around a selected vintage European-made output capacitor, the best-sounding modern filter capacitors on the market, and a custom wound output transformer (which barely fits inside the mic body).

The capacitor feeding the JFET is a critical component to the mic's sound. We've designed a custom bipolar electrolytic, with a special formulation of electrolyte that was initially developed for the legendary Black Gate line of capacitors.

Internal gain staging is carefully set for each individual mic to produce harmonic saturation at moderate SPL. This allows the Mini K67x to evoke the sound of vintage tube microphones, creating harmonics to complement the source, although without adding noise or crushing transients the way some tube mics would.

Tech Data
Model: Mini K67x
Acoustic Principle: Pressure gradient transducer
Polar Pattern: Cardioid
Capsule: 34mm O.D. True Condenser, proprietary K67 variation, dual backplate
Frequency Range: 20 - 20,000 Hz
Sensitivity: 12 mV/Pa
Impedance: 200 Ohms
Signal-to-noise: 81 dBA
Equivalent noise: 13 dBA
Supply voltage: 48±4 VDC
Output: Transformer balanced
Physical dimensions: 150 × 44mm; 380g (mic only)
1 of 4
Verfified Roswell Customers

Testimonials

Detailed Specifications

  • acoustic principle
    Pressure gradient transducer
  • polar pattern
    Cardioid
  • capsule
    Selected 34mm large diaphragm, dual-backplate, custom tuning
  • frequency range
    20 - 20,000 Hz
  • sensitivity
    12 mV/Pa
  • impedance
    200 Ohms
  • equivalent noise
    <12 dBA
  • supply voltage
    48±4 VDC
  • output
    Transformer balanced
  • physical dimensions
    150 × 44mm; 380g (mic only)

Comparison to Alternative Models


Mini K47x

The Mini K47x uses the same circuit design as the Mini K67x, and has the same harmonic character. Most signal-path components differ, as does the transformer, although both models use 1% tolerance audio grade resistors and oversized, high-nickel transformers. The Mini K47x has a "mid forward" frequency response, with a mild boost in the 4-7kHz range, while the Mini K67x has a ~1.5dB dip in its response through that range. Both models have a neutral top end (8-12kHz).


Mini K87

The Mini K87 is a "cleaner" version of the Mini K67x. The two mics' voicing is similar; the K67x is slightly darker (~2dB) in the 4k-8kHz range, while the Mini K87 is essentially flat in frequency response. The Mini K87 has fuller bass, which enables it to have good bass response even with longer working distance. The Mini K87 has higher headroom. Both mics use K67 style capsules.
